Intel BLKD33217GKE

Intel Core i3-3217U

( Windows 10 Pro 64bit)

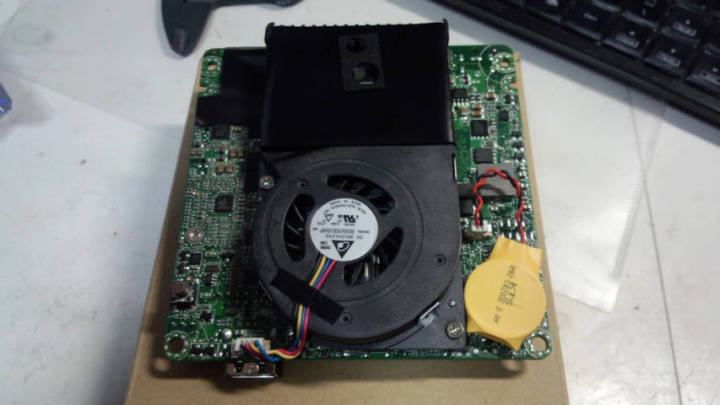

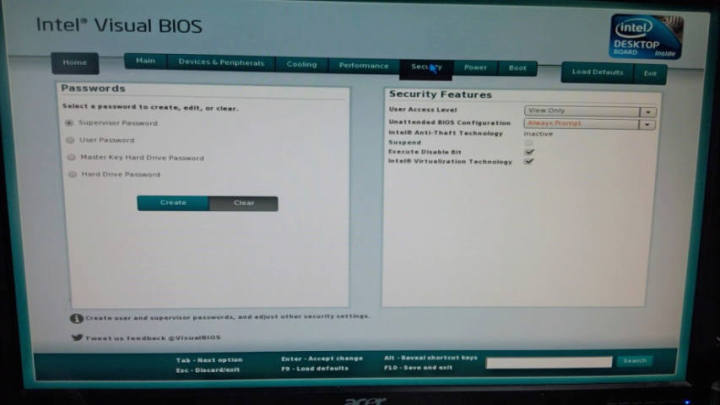

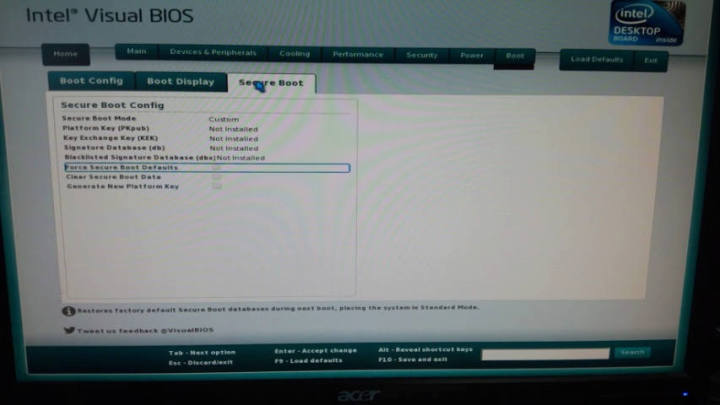

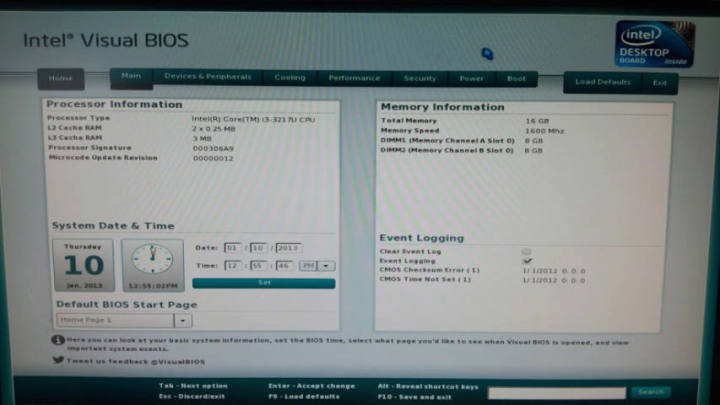

Intel® Desktop Board D33217GKE

Intel’s Next Unit of Computing Board D33217GKE is a tiny 4¨x4¨x1.5¨ with the power of the 3rd generation Intel® Core™ i3- 3217U processor.

The board features dual HDMI ports to offer dual display capabilities along with five USB ports and an Intel Gigabit Ethernet adapter to provide expandability and scale unseen in this form factor. Dual mini-PCIe slots also ensure flexible support for wireless and SSD configurations. Two SO-DIMMs for expandability up to 16GB of memory ensures that you don’t miss out on anything.

Form factor	UCFF
AA# (Altered Assembly)	G69901-200
BIOS ID string	GKPPT10H.86A
Processor	Intel Core i3 3217-U (soldered down) with active heatsink
Memory	Two SO-DIMM slots for 1333/1600 MHz memory support System memory
Chipset	Intel® QS77 Express Chipset
Graphics	Dual HDMI ports supporting HDMI 1.4a outputs for dual independent display
Audio	Intel® High Definition Audio (Intel HD Audio) in the following configuration: > 8-channel (7.1) digital audio via two HDMI 1.4a outputs
LAN support	Integrated Intel® 10/100/1000 network connection
Peripheral interfaces	Five USB 2.0 ports (3 external ports, 2 via internal header)
Expansion capabilities	Full size mini PCI Express with mSATA support Half size mini PCI Express
Included in the box	Fan Heatsink
Warranty	3-year warranty (BOX/BLK) Standard Warranty Replacement (SWR)

Intel® Core™ i3-3217U Processor (3M Cache, 1.80 GHz)

Status	Launched
Launch Date	Q2'12
Processor Number	i3-3217U
# of Cores	2
# of Threads	4
Clock Speed	1.8 GHz
Intel® Smart Cache	3 MB
Bus/Core Ratio	18
DMI	5 GT/s
Instruction Set	64-bit
Instruction Set Extensions	AVX
Embedded Options Available	No
Lithography	22 nm
Max TDP	17 W

Max Memory Size (dependent on memory type)	32 GB
Memory Types	DDR3/L/-RS 1333/1600
# of Memory Channels	2
Max Memory Bandwidth	25.6 GB/s
ECC Memory Supported	No

Processor Graphics	Intel® HD Graphics 4000
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	1.05 GHz
Graphics Output	eDP/DP/HDMI/SDVO/CRT
Intel® Quick Sync Video	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Wireless Display	Yes
Intel® Flexible Display	Yes
Interface (Intel® FDI)	Yes
Intel® Clear Video HD Technology	Yes
Dual Display Capable	Yes
# of Displays Supported	3

PCI Express Revision	2.0
PCI Express Configurations	1x16, 2x8, 1x8 2x4
# of PCI Express Lanes	1

Max CPU Configuration	1
TJUNCTION	105 C
Package Size	31mm x 24mm
Graphics and IMC Lithography	22 nm
Sockets Supported	FCBGA1023
Low Halogen Options Available	See MDDS

Intel® Turbo Boost Technology	No
Intel® vPro Technology	No
Intel® Hyper-Threading Technology	Yes
Intel® Virtualization Technology (VT-x)	Yes
Intel® Virtualization Technology for Directed I/O (VT-d)	No
Intel® Trusted Execution Technology	No
AES New Instructions	No
Intel® 64	Yes
Intel® Anti-Theft Technology	Yes
Intel® My WiFi Technology	Yes
4G WiMAX Wireless Technology	Yes
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Intel® Demand Based Switching	No
Thermal Monitoring Technologies	Yes
Intel® Fast Memory Access	Yes
Intel® Flex Memory Access	Yes
Execute Disable Bit	Yes
Intel® VT-x with Extended Page Tables (EPT)	Yes

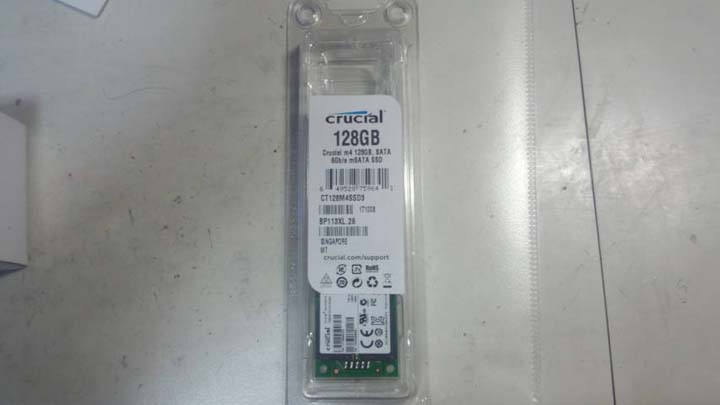

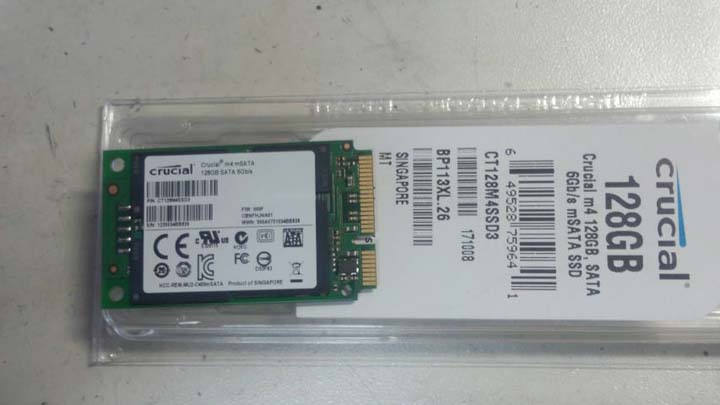

crucial m4 128GB 6GB/s mSATA SSD

Capacity (Unformatted)	128GB
Memory Type	Micron MLC NAND Flash memory
Form Factor	mSATA
Interface	SATA 6Gb/s (SATA III)
Controller	Marvell with Micron Custom Firmware
Sequential Read	500MB/s
Sequential Write	175MB/s
4KB Random Read	45,000 IOPS
4KB Random Write	35,000 IOPS
MTBF	1.2 million hours
Endurance	72TB Total Bytes Written (TBW), equal to 40GB per day for 5 years
Compliance	RoHS, CE, FCC, UL, BSMI, C-TICK, KCC RRL, W.E.E.E., TUV, VCCI, IC

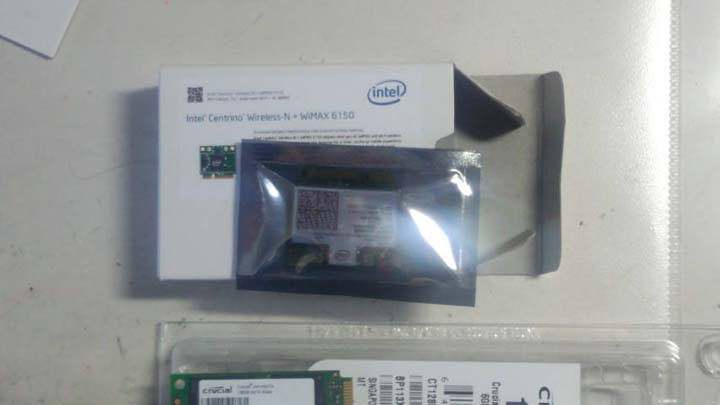

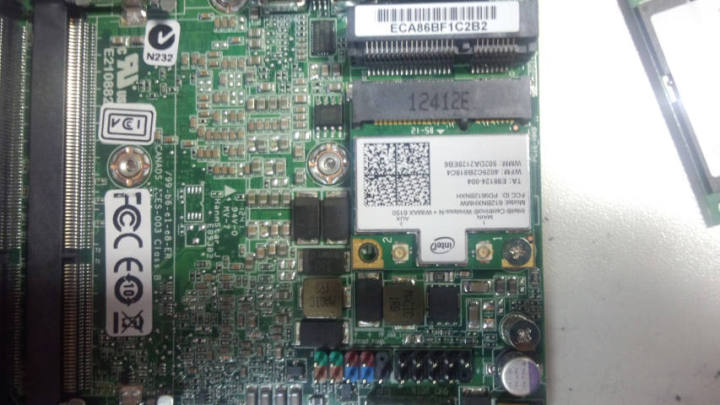

Intel Centrino Wireless-N + WiMAX6150

Experience Enhanced Wireless + Intel 4G WiMAX for Your On-the-Go Connected Life

Enhanced Performance	802.11bgn, 1x2 delivers enhanced speed (up to 300 Mbps - Rx only), range and reliability.
Energy Efficient3	Enables greater mobility and convenience.
Intel® 4G WiMAX	Multi-band 802.16e-2005 Wave 2 delivers multi-band (2.3 GHz, 2.5 GHz, 3.5 GHz) performance with up to 28 Mbps downlink and 6 Mbps uplink for ultra-fast, multi-band global coverage.
Intel® Wireless Display4	Get a front row seat to all your personal and online favorites on the big screen with a simple wireless connection.
Intel® Smart Connect Technology5	Automatically updates important content even while your Ultrabook is asleep or for quicker Internet access on resume.
Intel® My WiFi Dashboard6	Share seamlessly and directly with other Wi-Fi devices. Chat, transfer files, or create a personal hotspot, over Wi-Fi Direct* without WLAN or hotspot access.

Silicon Power DDR3-1600 PC3-12800

SP016GBSTU160N22

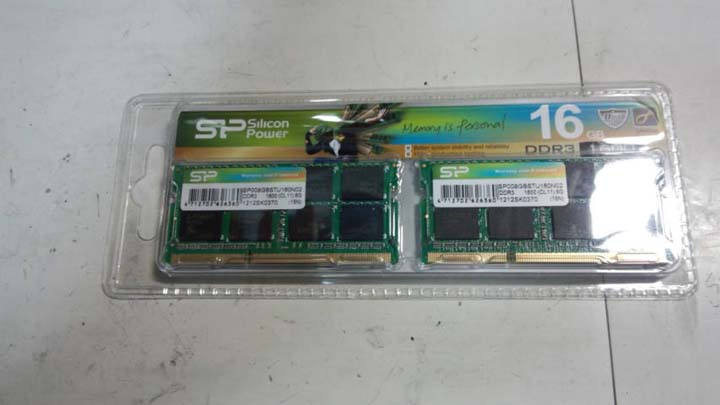

8GB x 2 kit Package

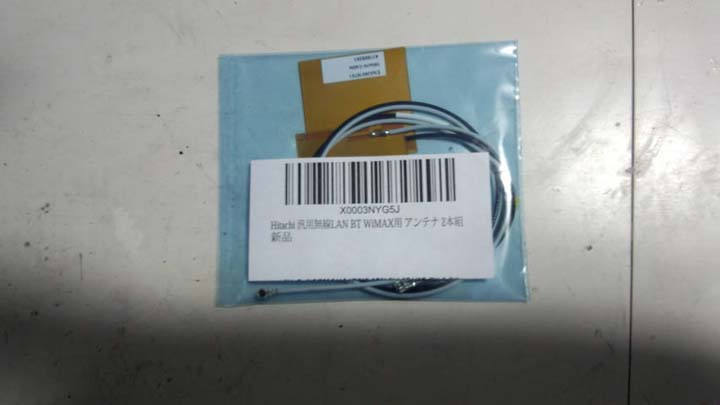

HITACHI 汎用無銭 LAN BT WiMAX アンテナ 2 本

組み立て

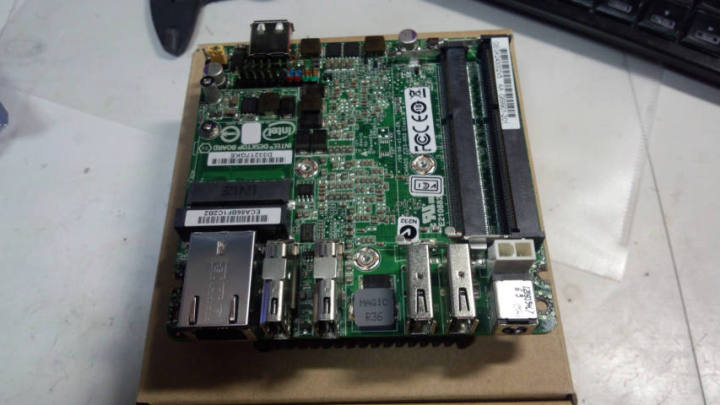

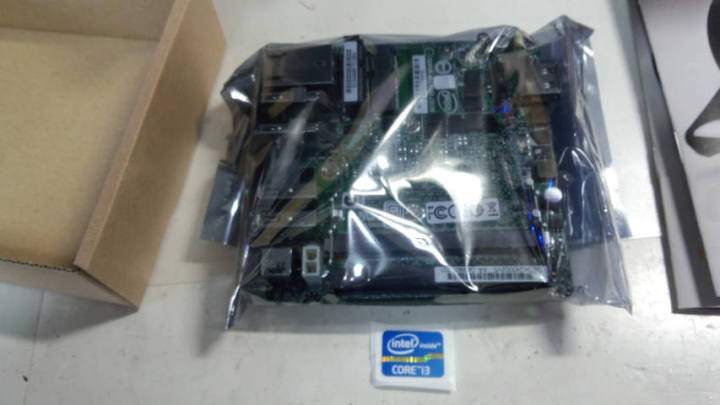

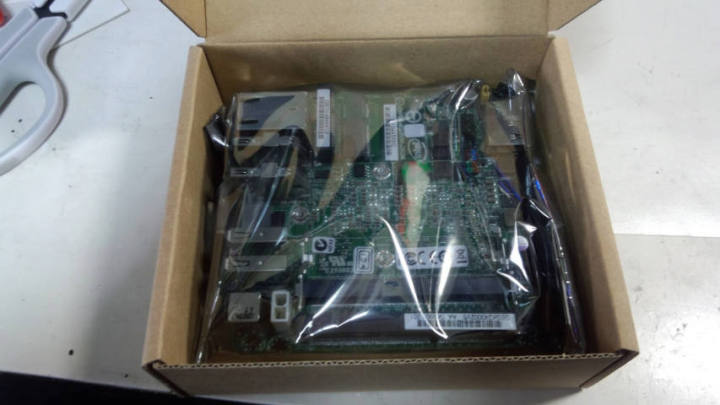

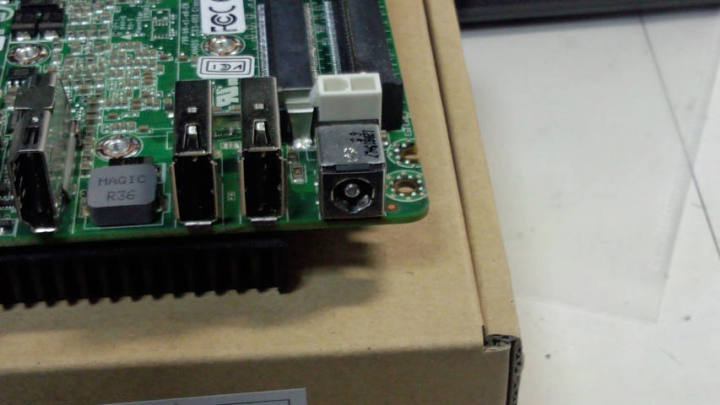

　またまた、いつもの気になる物を見つけました。買わずにはいられません。これなんだか解りますか？ UNC 仕様のマザーボードです。なんと、100 mm x 100 mm x サイズですよ。

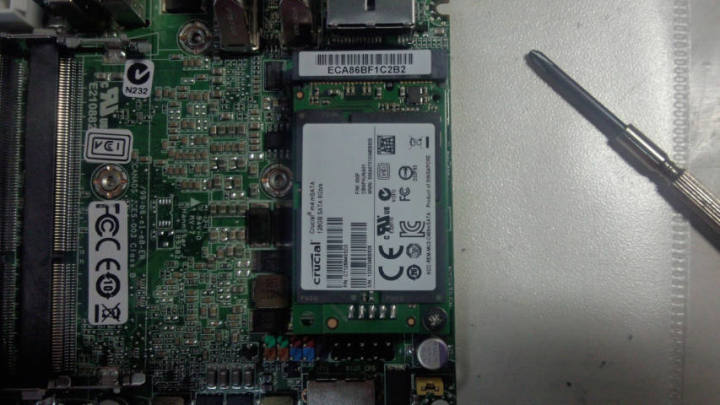

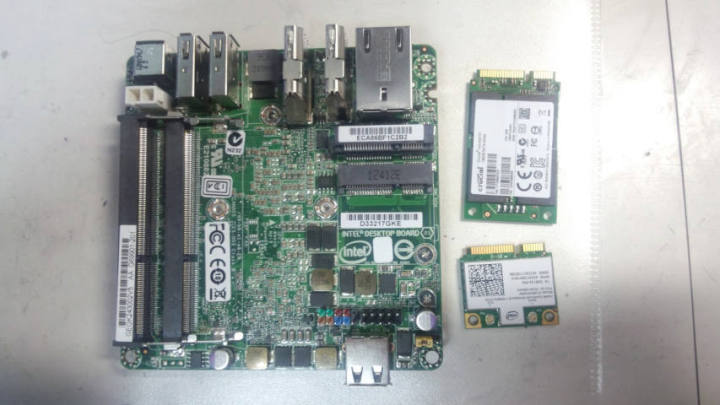

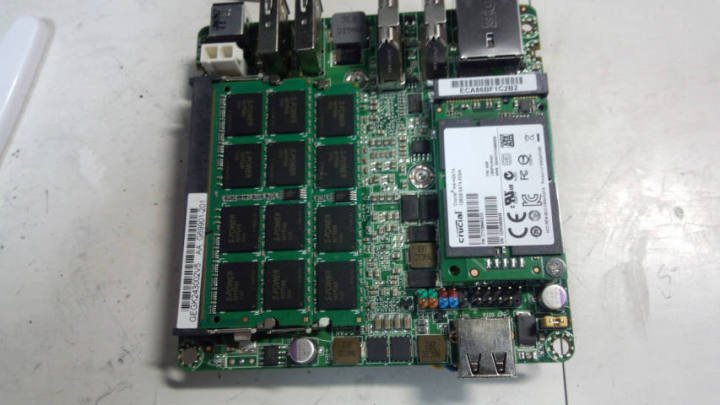

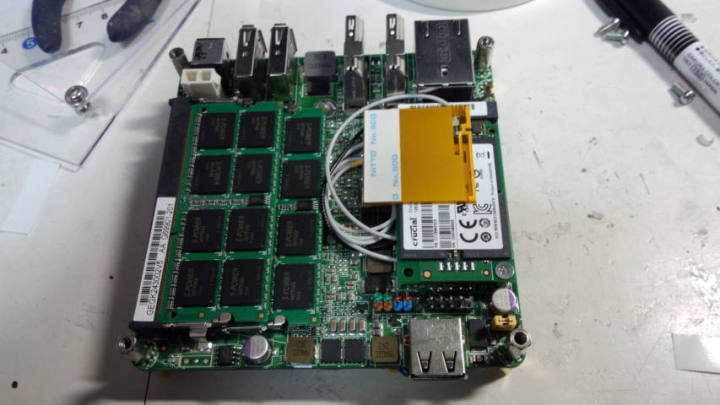

これに、Memory、SSD、W-LAN、を追加購入。電源はたぶん持っているもので足りると思います。後ケースは自作します。これからが楽しみです。

念のため、バルク品ですから・・・・サポートなしです。

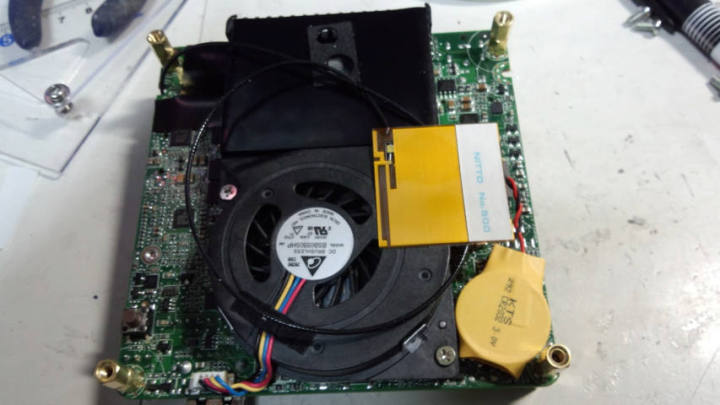

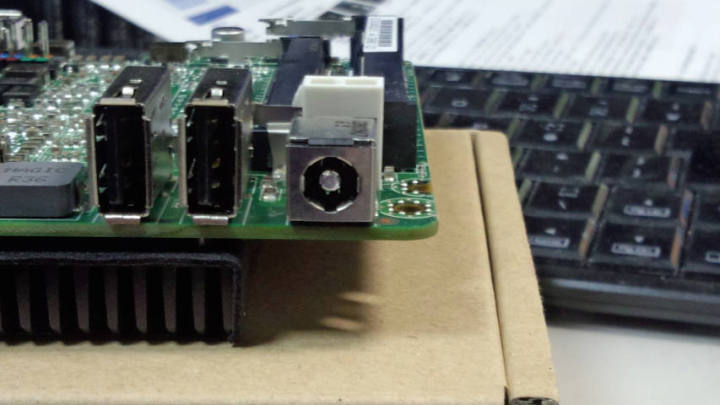

　電源を手持ちのもで探しましたが・・・。一番近いものは SONY 製でした。しかし、端子の大きさが全然違う。電圧も 19.5V　3.0A と微妙？？ PCパーツ、少しのことで壊したら大損します。結局、UNC 専用のAC アダプターを購入することにしました。ちょっと出費がかさむ！

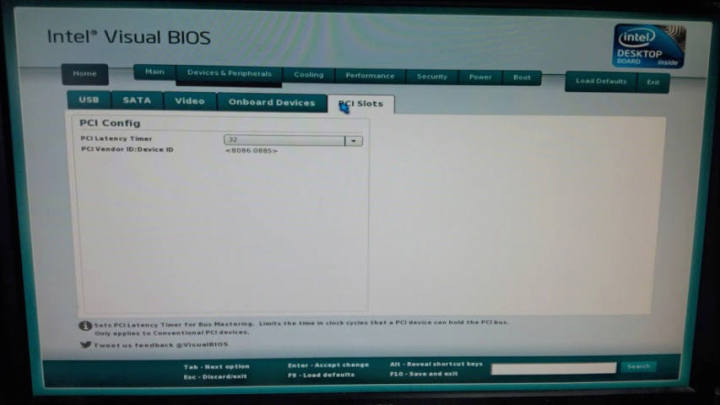

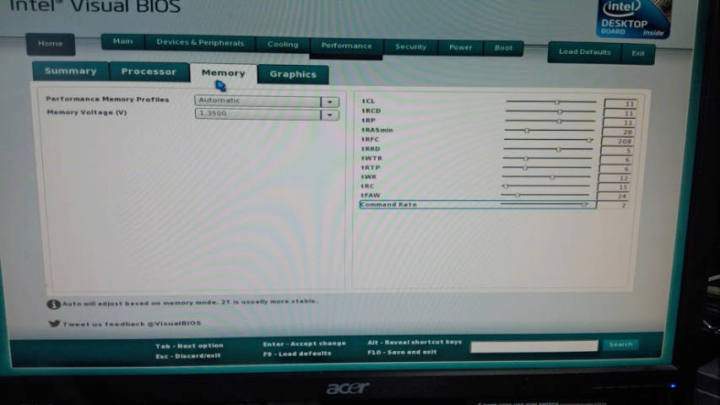

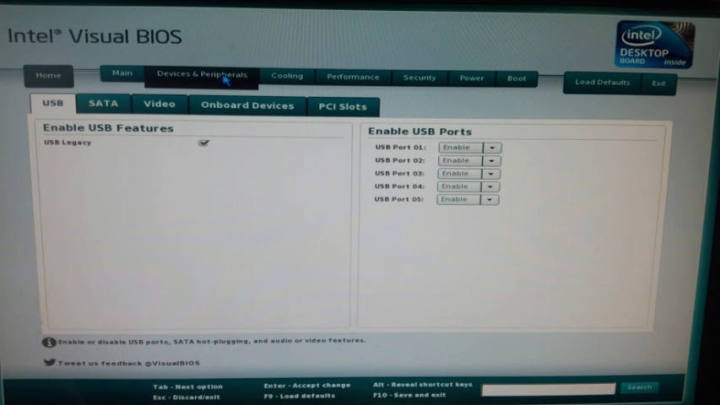

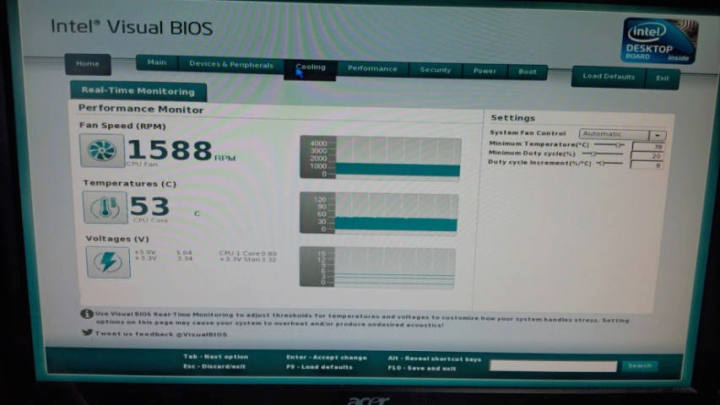

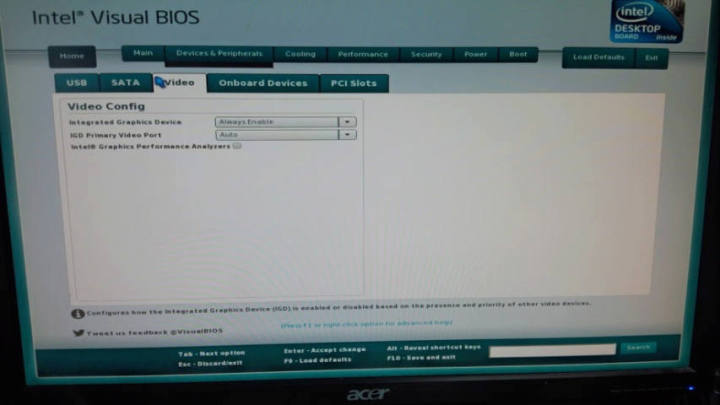

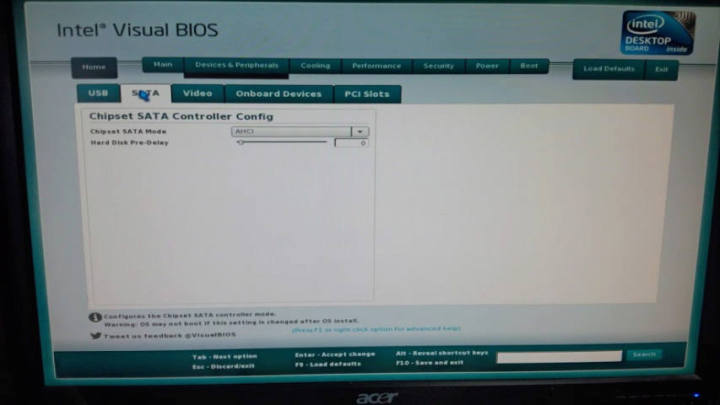

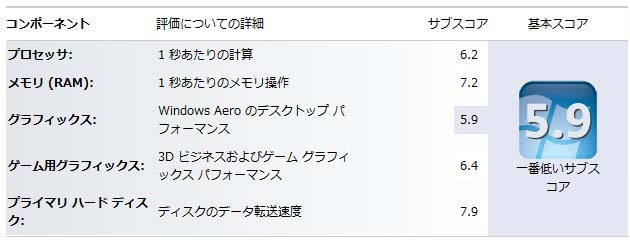

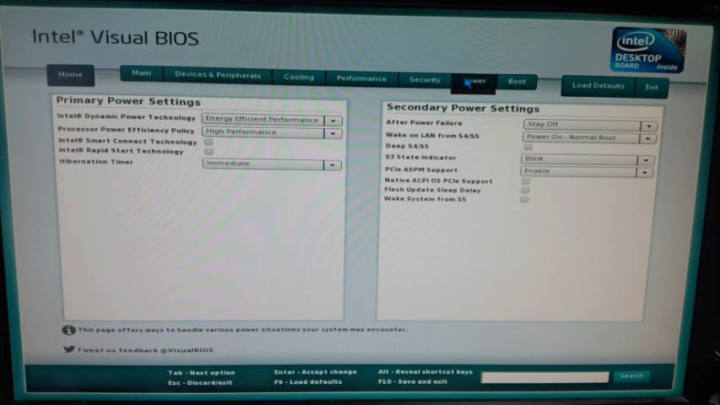

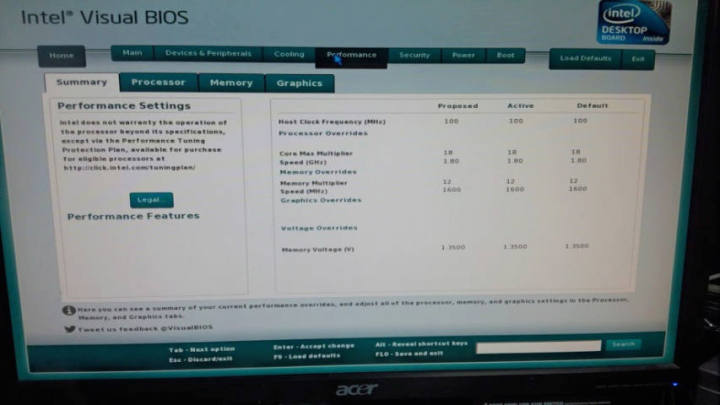

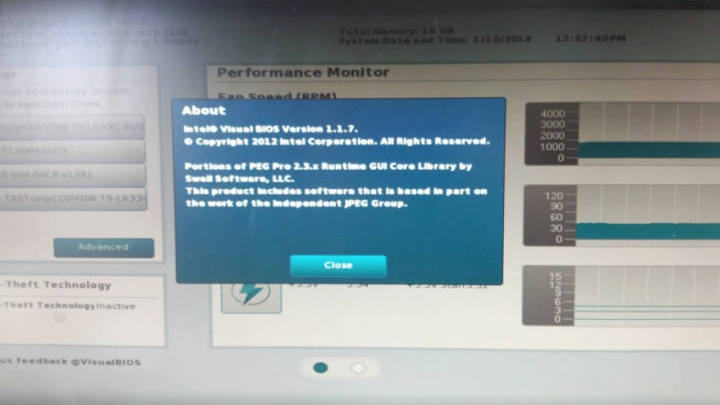

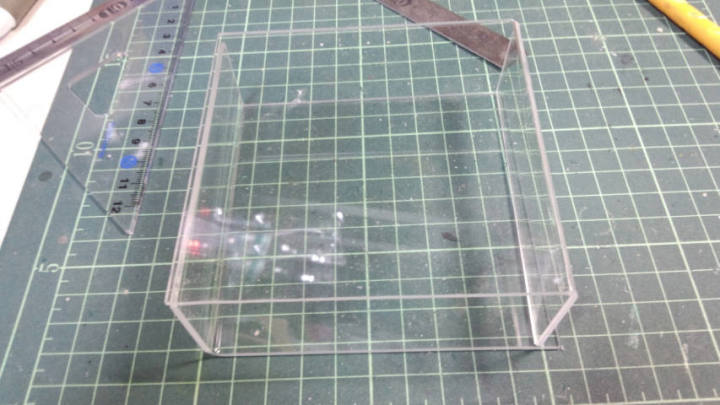

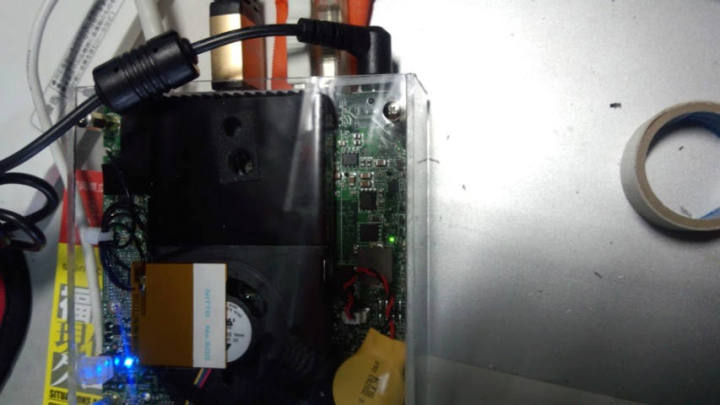

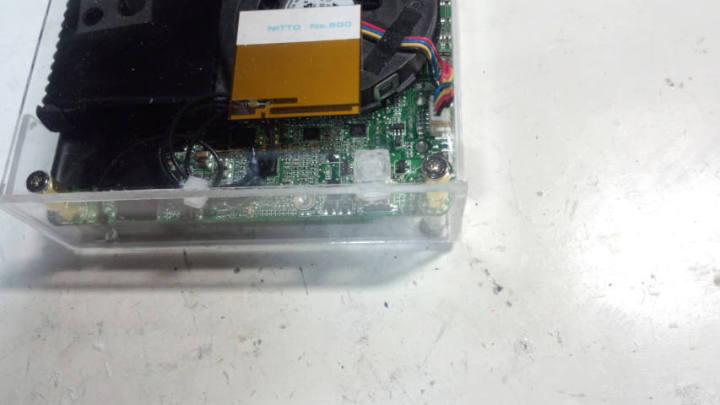

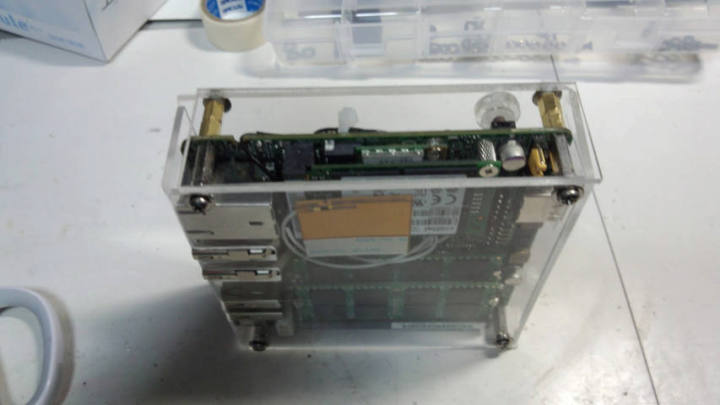

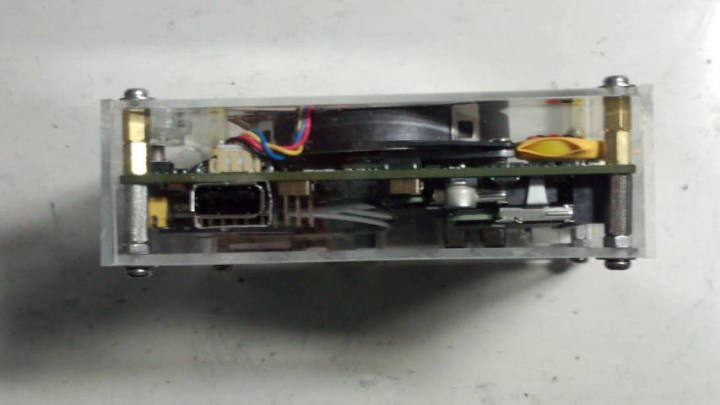

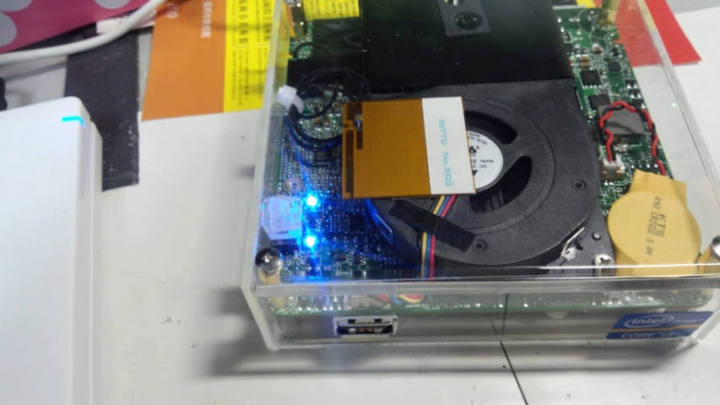

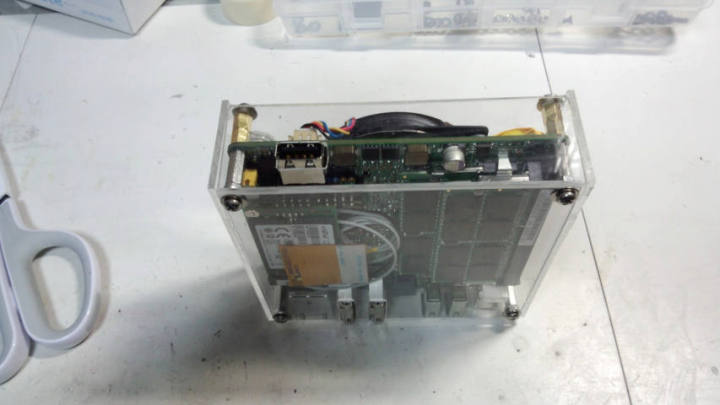

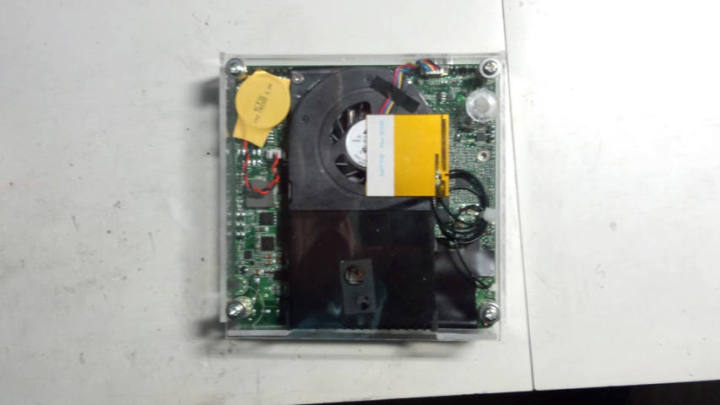

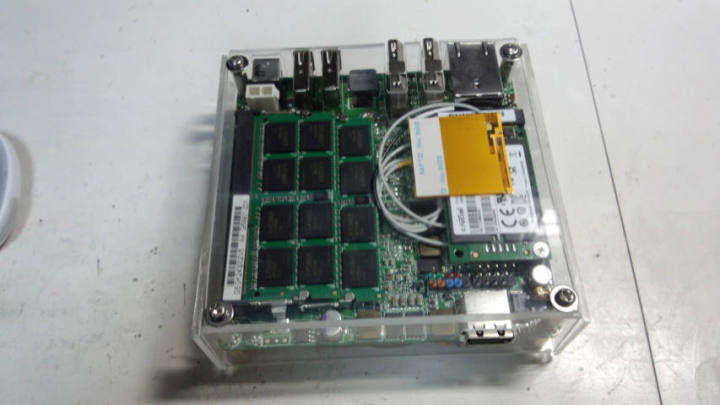

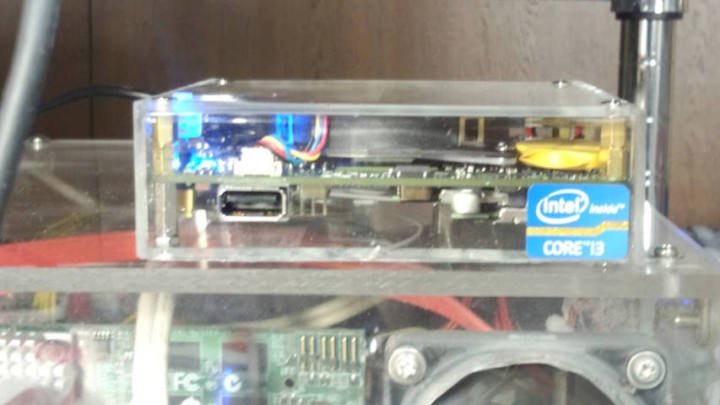

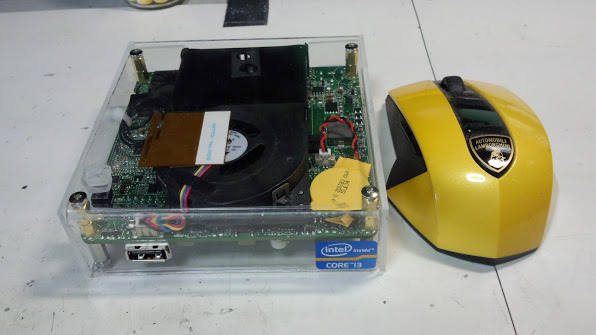

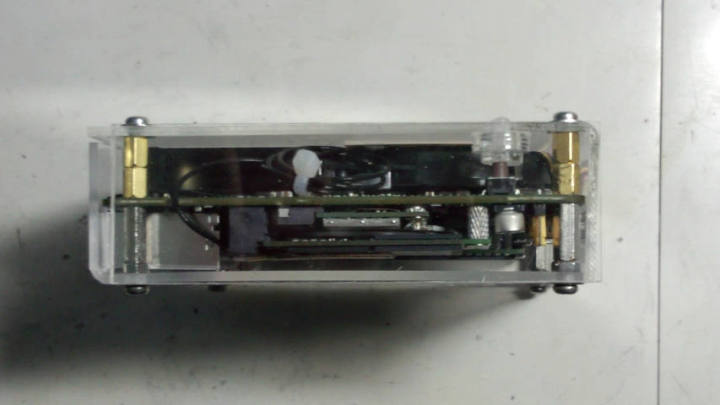

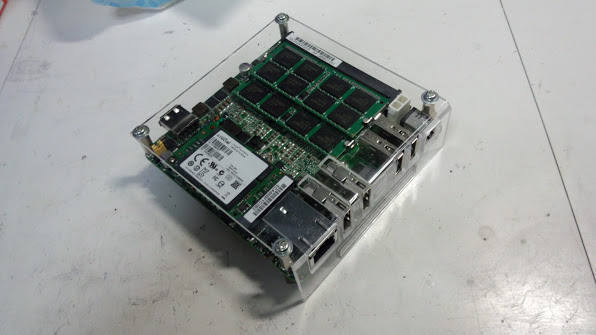

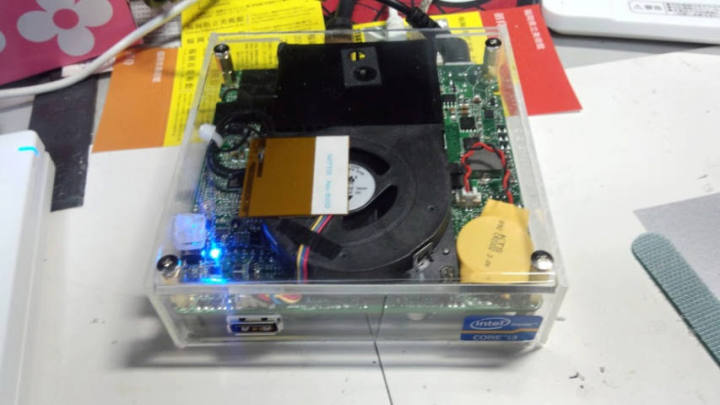

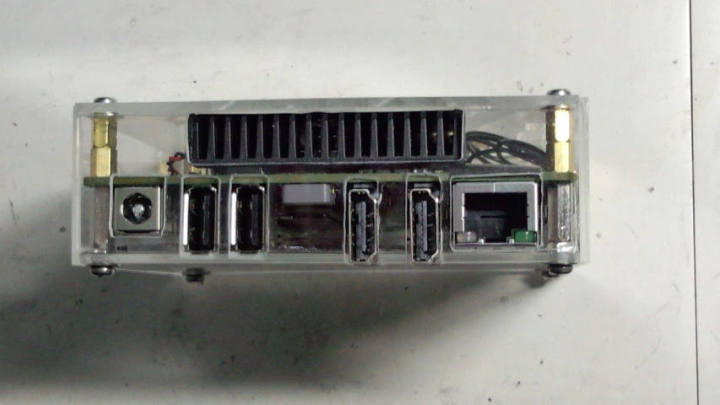

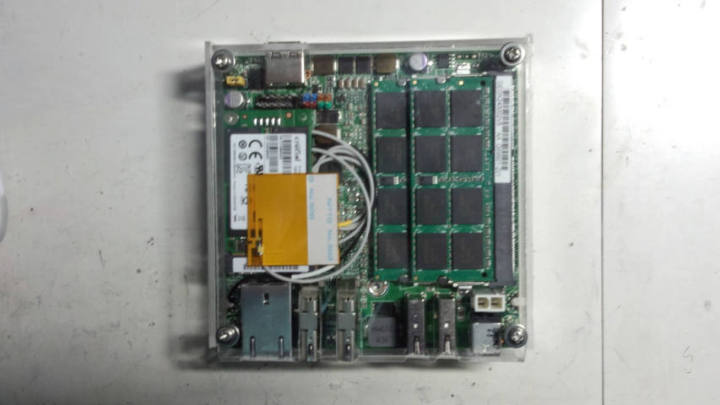

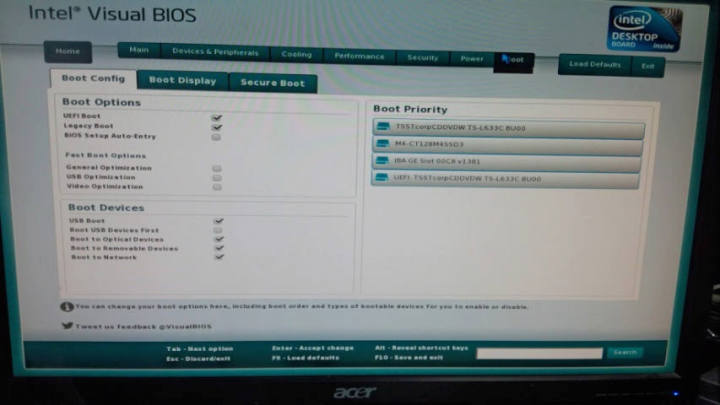

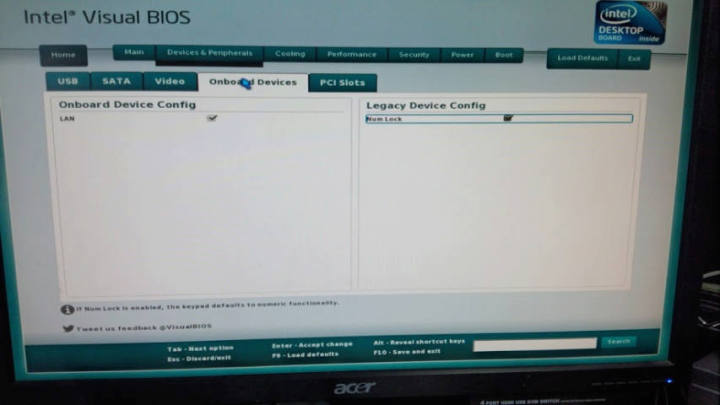

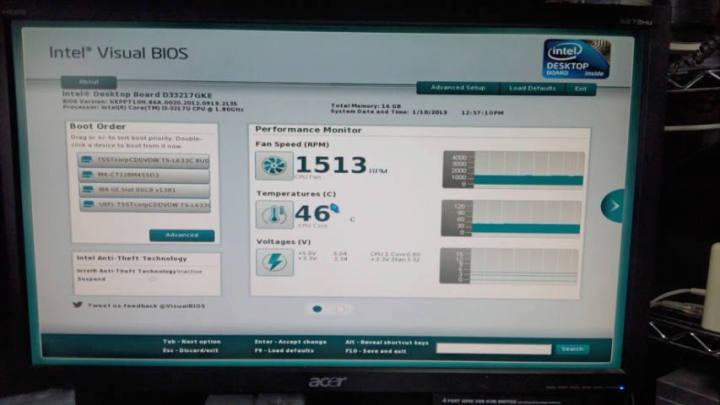

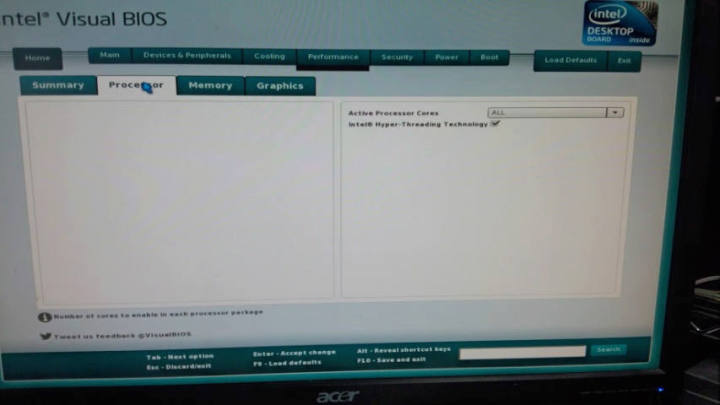

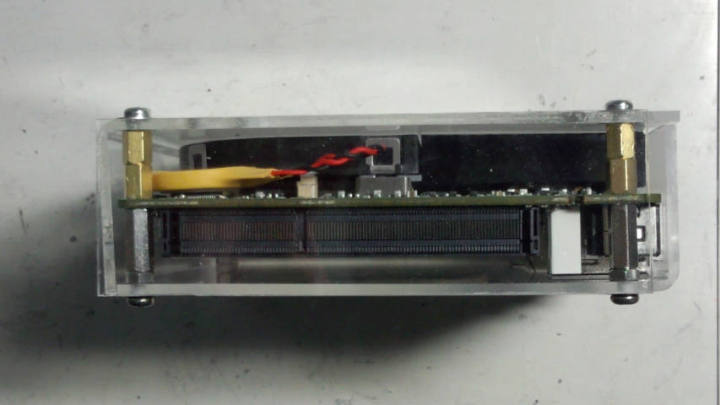

　マザーボードを眺めながらケース製作の計画を立てています。マザーボードのサイズは 101.1 mm x 101.1 mm x 30.1 mm 。当然、無駄のない最小のサイズに納めます。材料は中身が見えるアクリル板を使います。ボード上にスイッチや LED も埋め込んであるので、あとはアクリル板をどのように組み合わせるかを考えるだけです。
